SM G652D Fiber Optic Pigtail

Brand Name : ANC

Model Number : SC Fiber Optic Pigtail

Certification : RoHS

Place of Origin : China

MOQ : 1pc

Price : please ask

Supply Ability : 36000pcs terminator per day

Packaging Details : 1 set per bag

Color : 12color or 8color or 4 color customized

Pigtail : Easy strip, tight buffer optional

Jacket : LSZH, PVC optional

Length : 1m, 1.5m, 2m, Customized

Fiber : SM G652D, SM G657A1/2, OM1/2, OM3/4 customized

Connector : SC, LC, FC, ST, E2000, customized

Contact Now

ODF Assembly Fiber Optic Pigtail Connector12 Color SM SC APC SC PC LC PC

Description

12 Colors SM SC/APC SC/PC Fiber Optic Pigtail manufactured by ANC International Co., Limited is used in WANs, LANs, and telecommunications. It is ideal for fusion splicing. ANC produces and supplies the 12-color fiber optic pigtail at high quality and competitive price. Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other. The connectors can be SC, LC, FC, ST, E2000 optional; fiber cable, color, packing is customized. ANC International Co., Limited is good at OEM production for these 12color fiber optic pigtails

Features

Superior qualified standard, PC, APC, UPC polishing

100% optic test: Insertion Loss: ≤0.25dB

100% optic test: Return Loss: ≥50 (UPC); ≥60 (APC); ≥30 (MM PC);

φ0.9mm, φ2.0mm, φ3.0mm cable optional

Single mode (9/125) or OM1, OM2, OM3, OM4 fiber available

FC, SC, LC, ST, E2000, etc. connector

Available in distribution cable or separate pigtails

Applications

Patch panel, ODF splicing

Telecommunication networks

Data center

Technical Data

Characteristics	Unit	Value/Performance
Insertion Loss (IL)	dB	≤0.25 typical (100% test)
Return Loss (RL)	dB	PC≥50; APC≥60 typical (100% test)
Length	Meter	+10cm/-0cm
Endface	/	Perfect clean (100% test)
Radius of curvature	mm	7~25 (check upon client request)
Apex offset	um	0~50 (check upon client request)
Radial fiber height	nm	-50~+50 (check upon client request)
Operating Temperature	℃	-40~+80

Related Pictures:

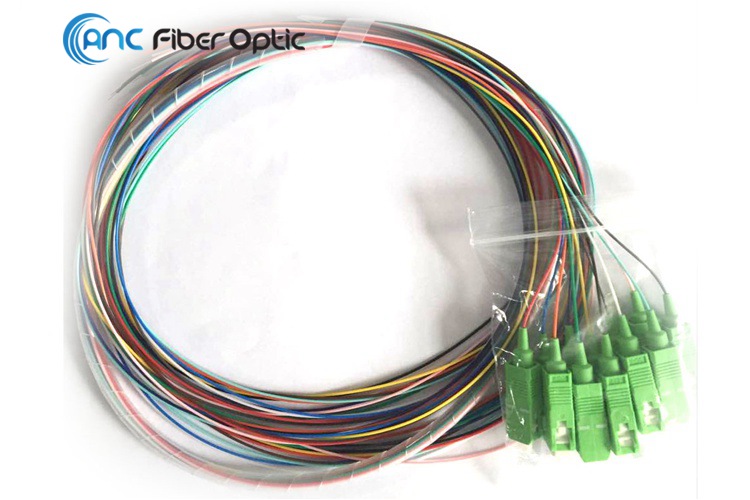

SM G652D Fiber Optic Pigtail
